Product Details
Place of Origin: Shandong, China, Shandong, China
Brand Name: HuaXiang
Payment & Shipping Terms
Price: $8,000.00/sets 1-5 sets
Use: |
Truck Trailer, Truck Trailer |
Type: |
Semi-Trailer |
Material: |
Steel |
Size: |
13750*2550*3850mm, Customizable |
Max Payload: |
40T |
Axle: |
13T 14T 16T 18T |
Suspension: |
Mechanical Suspension/Air Suspension |
Color: |
Customers Optional |
Production Time: |
15 Workdays |
Use: |
Truck Trailer, Truck Trailer |
Type: |
Semi-Trailer |
Material: |
Steel |
Size: |
13750*2550*3850mm, Customizable |
Max Payload: |
40T |
Axle: |
13T 14T 16T 18T |
Suspension: |
Mechanical Suspension/Air Suspension |
Color: |
Customers Optional |
Production Time: |
15 Workdays |

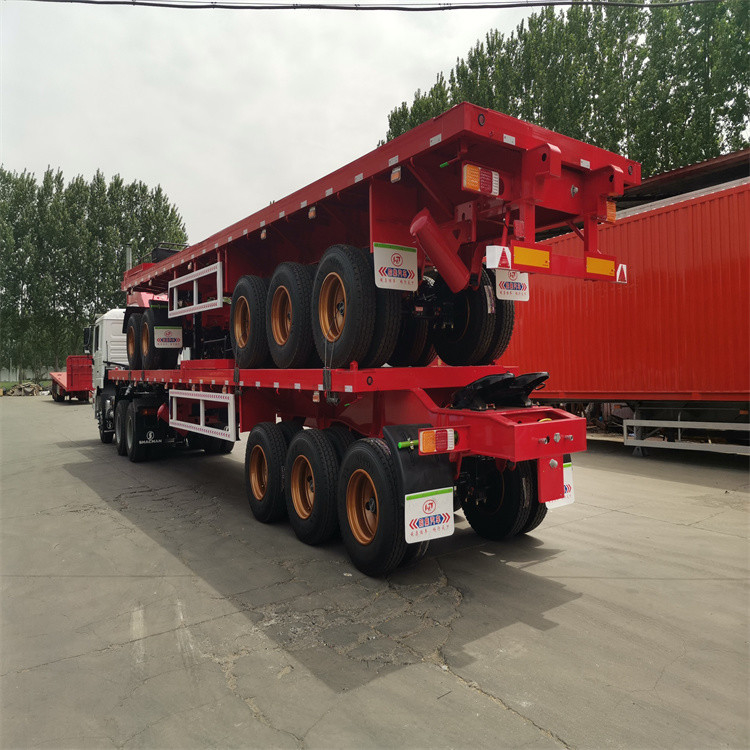

Trailer Model | 3Axles New Flatbed Semi Trailer |
Dimensions(L*W*H)mm | 12500*2500*1550 |
Curb Weight(KG) | 7500 |
Loading Weight(ton) | 60tons |
Axle | Fuwa |
Suspension System | Common Mechanical Suspension |
Frame | The height of the beam is 500mm, |
Upper plate is 14mm,width:140mm, | |
Down plate is 16mm,width:140mm, | |
Middle plate is 8mm. | |
Steel Spring | 10/10/10 leaf spring suspension |
Twist Lock | 12 sets CIMC twist lock |
Platform Plate | 3mm Diamond Plate |
Traction Pin | 50mm or90mm JOST Brand |
Tire Type and Quantity | 12R22.512pcs Triangle Brand |
Spare Wheel Bracket | 2 pieces |
Tool Box | 1 Unit |
Landing Leg | Standard 25 ton JOST Brand |
Brake Air Chamber | Six Big chambers |
Brake System | WABCO RE 6 relay valve; |
T30/30+T30 Spring brake chamber(TKL brand); | |
One piece of 45L air tanks | |
Electrical System | 24V,7 Pole plug |
Tail lamp with turn signal,brake light&reflector, | |
Side lamp etc. |
